EXPLORE THE BEST OF EVERYTHING

New AIRSTREAM ATLAS TOURING COACHES FOR SALE IN FORT MYERS, FL

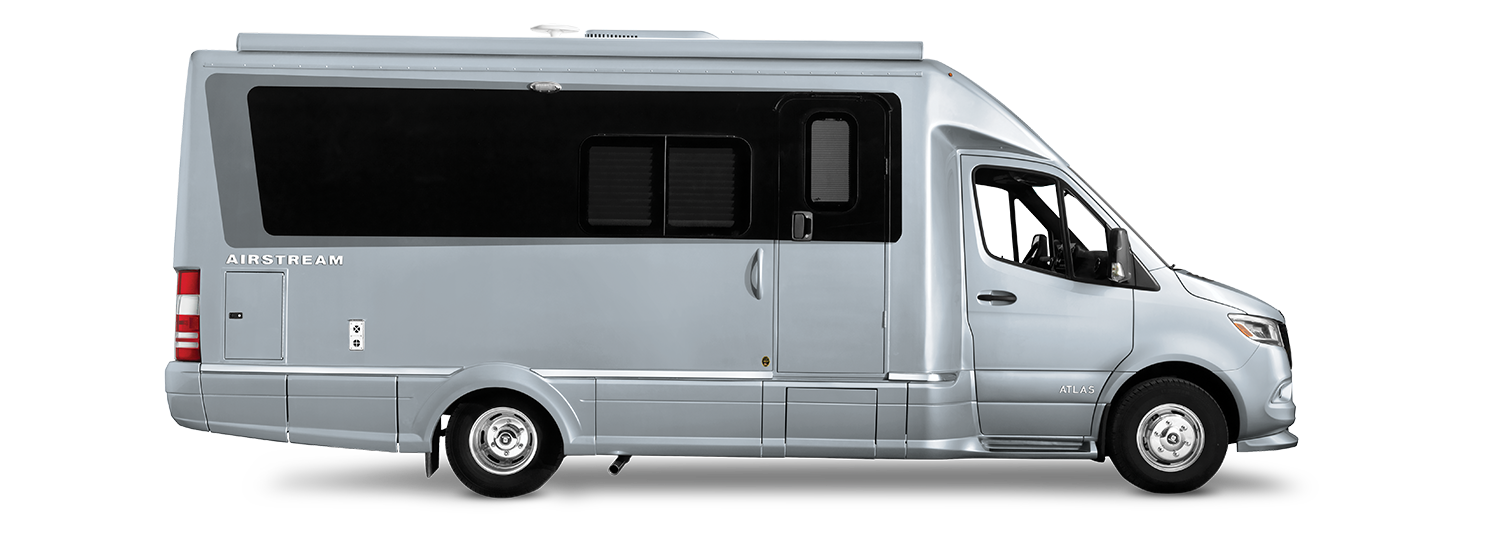

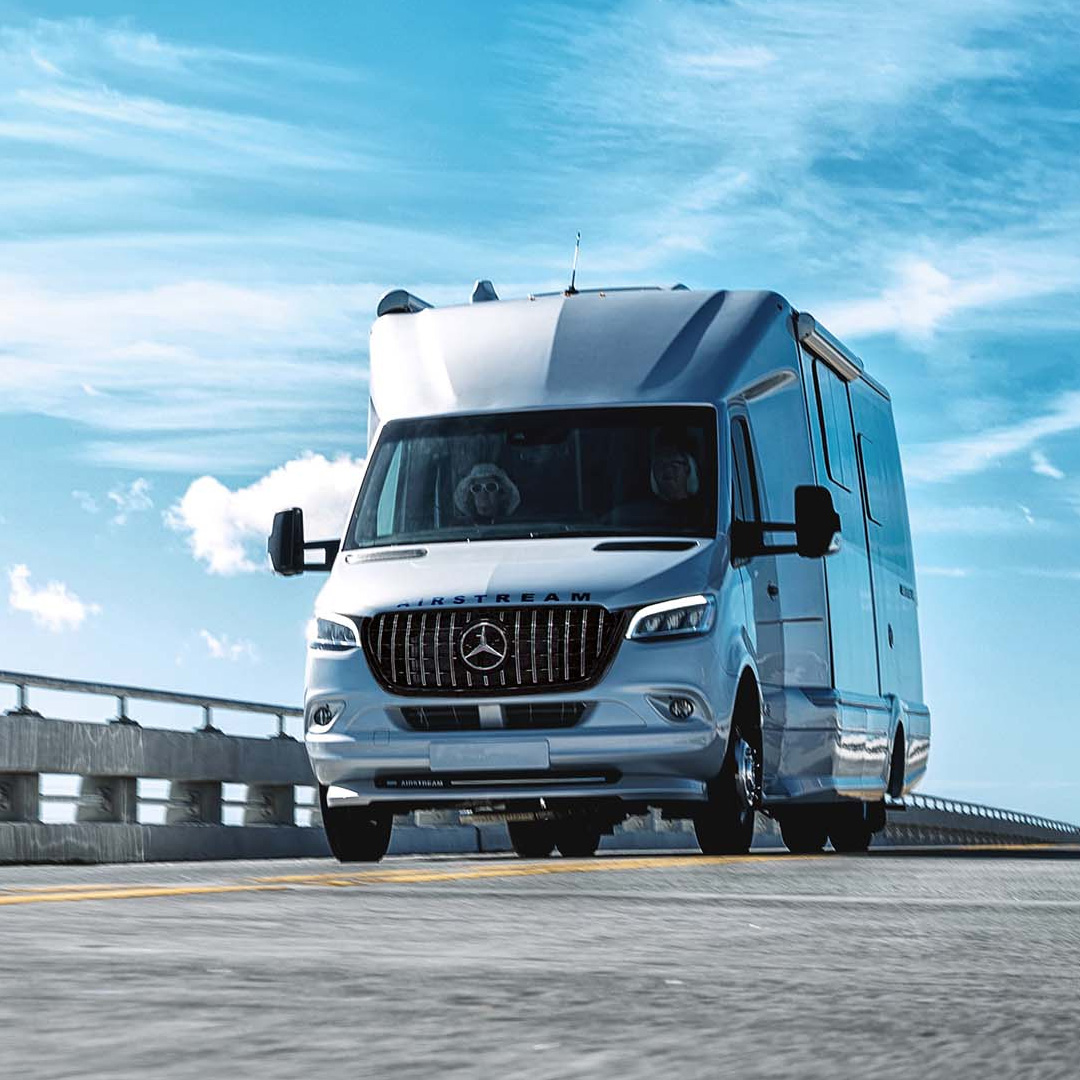

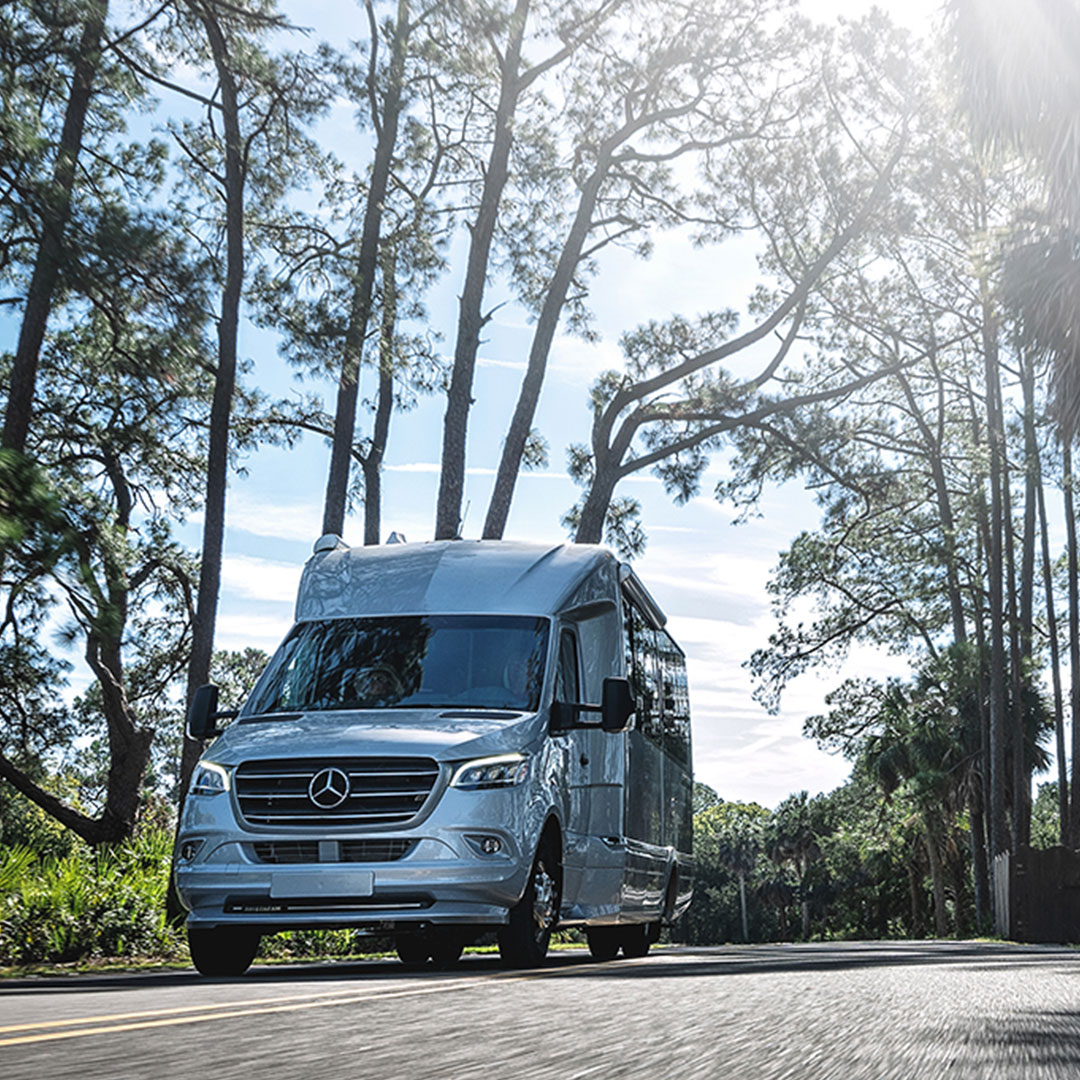

The Atlas Touring Coach is our most luxurious touring coach to date. It’s a Class B+ RV built on the legendary Mercedes-Benz® Sprinter van chassis and inspired by our trailblazing Airstream Interstate series. The Atlas is a seamless merging of luxury and advanced performance with more than 50 best-in-class features and our most spacious floor plan. In fact, with its power slide-out Murphy Suite, wider body, richly appointed finishes and understated automotive styling from grill to bumper, we affectionately call it a Class B+, in truth we know it’s in a class all its own. The mold for best-in-class has been broken.
‍

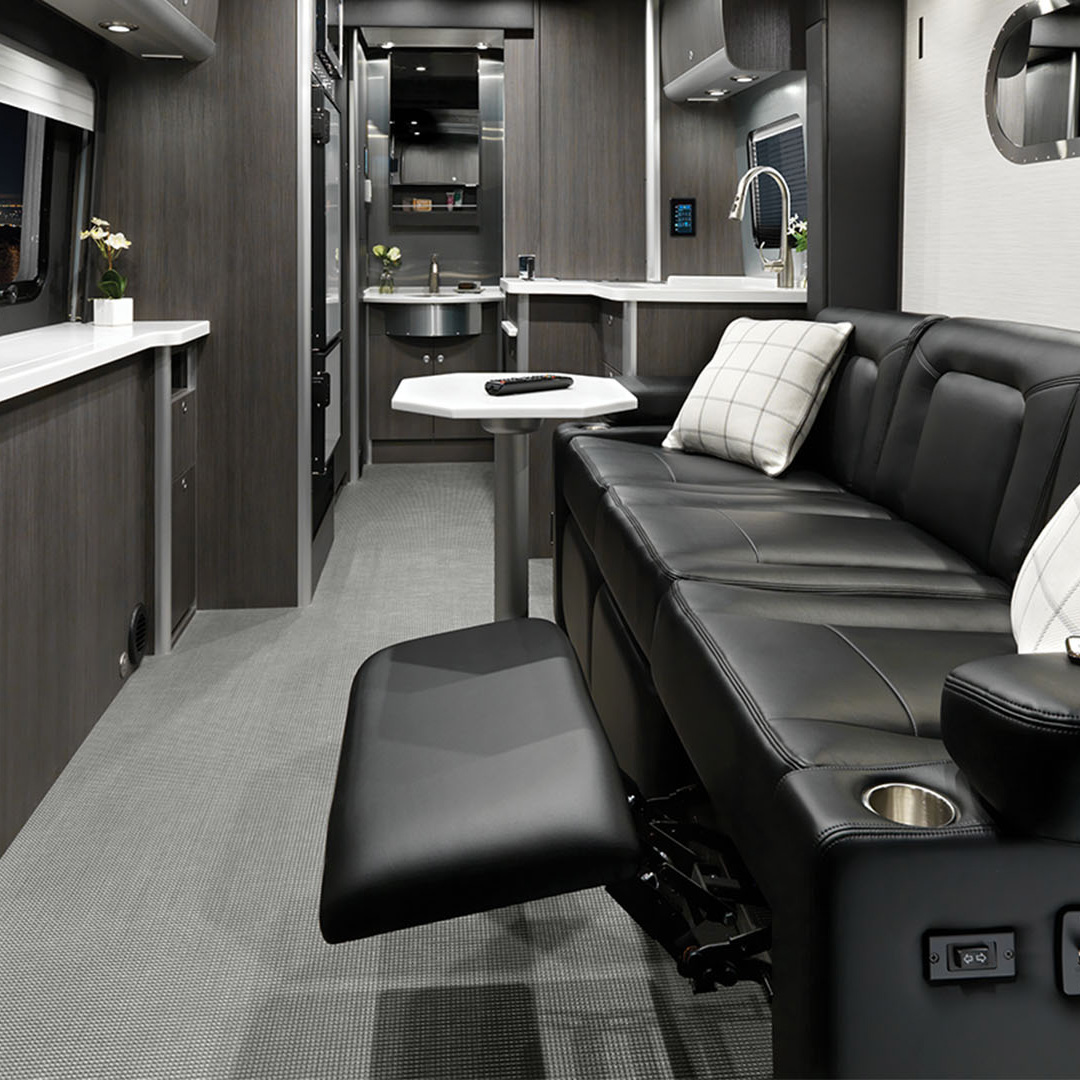

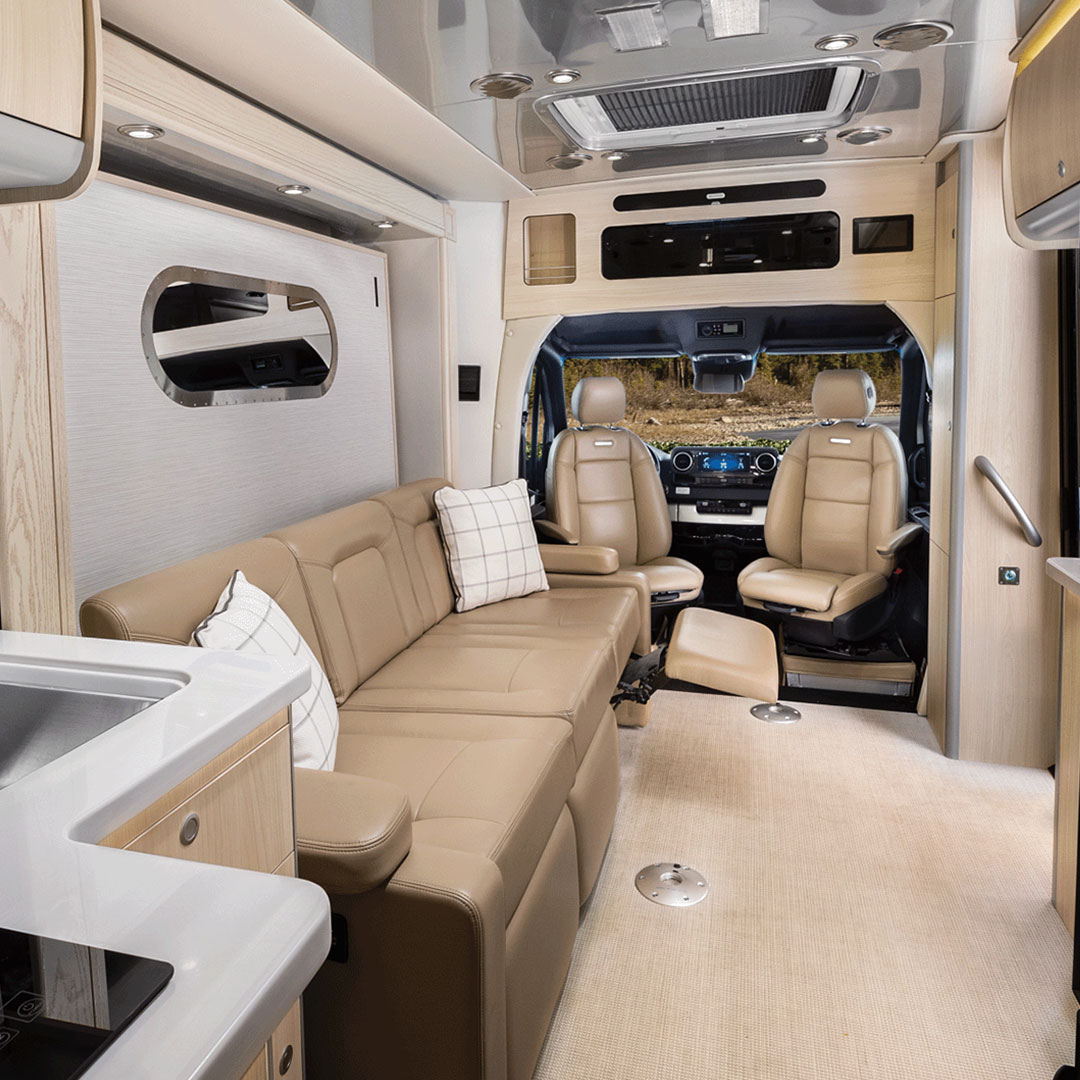

Atlas is designed to give you plenty of room to start with, and then expand via the power slide-out to make things even roomier and more luxurious. If you can’t imagine a day without your creature comforts, you’ll be right at home in the Atlas. While you’re traveling, you have plenty of room for passengers to ride along on the sofa and use the aisle. And when you get settled, you can extend the slide-out and pull down a large Murphy bed for a truly great night’s sleep. A new standard has arrived for those who believe a well-traveled life begins with the best.

VIEW INVENTORY

DOWNLOAD BROCHURE

Length

24'

Seats

UP TO 4

Floor Plans

Sleeps

up to 2

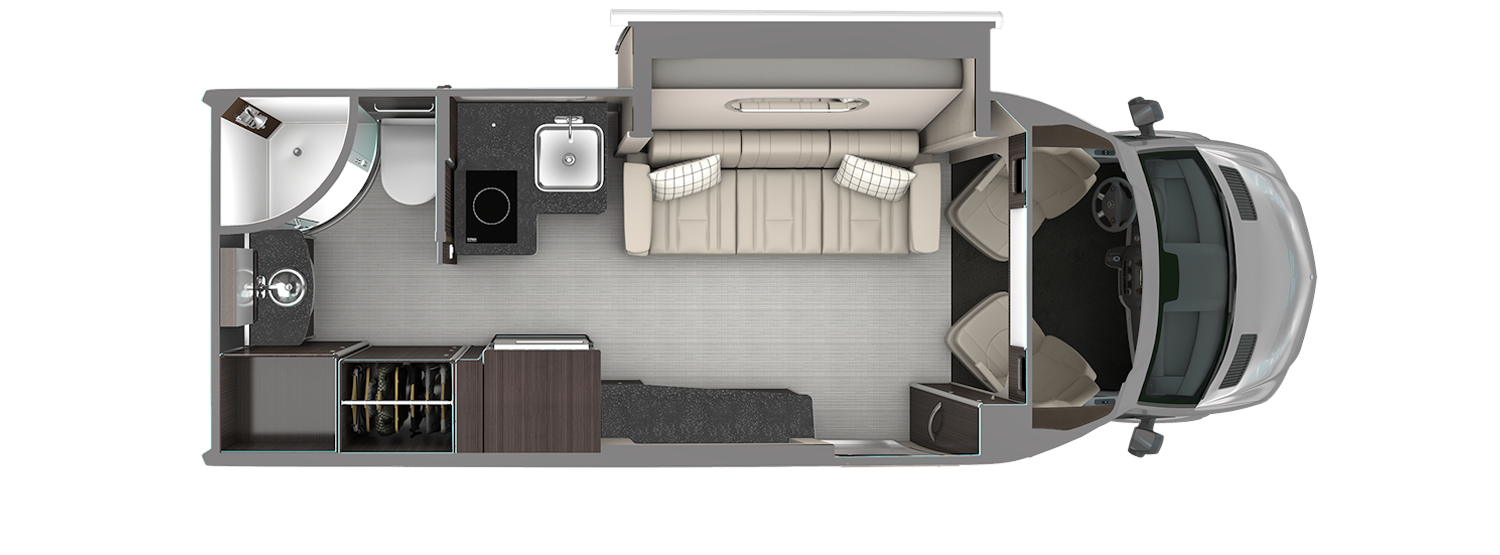

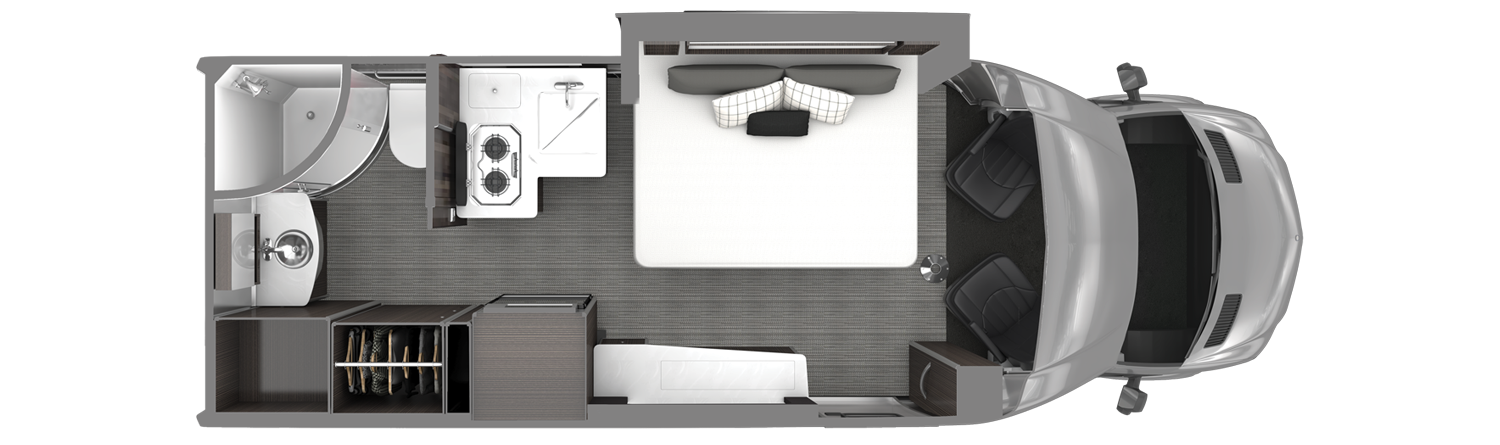

FLOOR PLANS

The Atlas is the first Airstream motorhome to include a power slide-out, and we’ve taken care to do it right. On the road, the slide-out is retracted and fits seamlessly with the luxury automotive body style. And at the campground, it extends with the touch of a button on the Multiplex control panel. Once extended, you have more room to relax on the couch or pull down the Murphy bed to turn in for the night.

ALSO AVAILABLE IN A TOMMY BAHAMA ® SPECIAL EDITION

If you love Tommy Bahama style as much as you love Airstream quality, the Tommy Bahama Special Edition is the perfect fit. It’s all the sophistication of an Airstream Coach with relaxation-minded décor extras like a built-in bar, special wall graphics and fabrics.

The Atlas Tommy Bahama provides all the beach vibes with even more room to spread out and get a good night's sleep. Includes specially designed warm wood cabinets, tropical graphics and airy tan seating to bring the island style to life.

FEATURES

The Airstream Atlas is our most luxurious touring coach to date, setting a new standard for those who want travel in style, convenience and comfort. The power slide-out, Murphy Suite bed and spacious residential-style rear bathroom make this touring coach ready for any journey. You'll appreciate the safety standards that have been added to protect your family while on the road, including a MBUX infotainment system with voice recognition, cross traffic assist, lane keeping assist, rear and side view cameras and the most airbags available from Mercedes-Benz.

Performance & Safety

Mercedes-Benz’s reputation for the best safety and convenience mirrors our own standards for lasting quality and streamlined design, and they come together beautifully in the Atlas. We start with the foundation of a Mercedes-Benz Sprinter van chassis and include more than 50 best-in-class features as standard, not upgrades. From the front grill to the back bumper and in between, the Atlas is top-of-the-line, mile after mile.

Slide-Out Murphy Suite

Residential-Style Bathroom

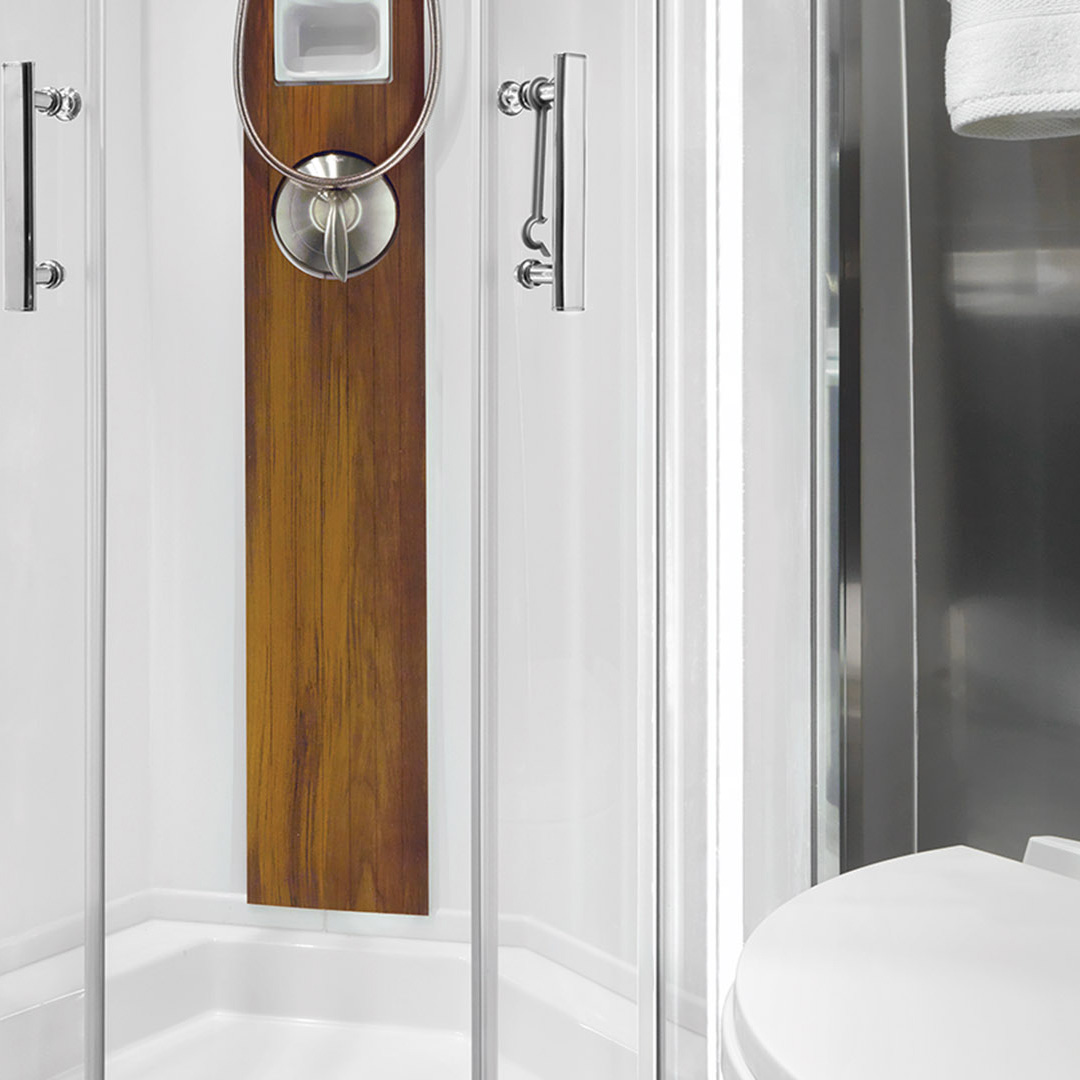

The Atlas bathroom is a stand-out. Behind a pocket door is a three-piece, residential-style layout that spans the rear of the coach. The shower features teak inlays and Kohler® stainless steel fixtures, and a tankless water heater provides as much continuous hot water as you like. Plus, hanging closet storage and drawers for your folded clothes all live inside the bathroom, so everything you need to get dressed and ready is in one place.

Hideaway Samsung ® Smart TV

Rises from the entertainment cabinet.

Premium Air Ride Suspension

A smooth ride, mile after mile.

Tankless Water Heater

Unlimited continuous hot water.

Fob-Locking Exterior Storage

Mercedes-Benz key fob for auto locking.

Onan ® Diesel Generator

Ultra-quiet 3.2kw generator.

Rooftop Solar Energy Panels

Stay off the grid for longer.

Interior décor options

Airstream décor options let you pick the style to match your personality. Whether you want a dark, dramatic interior or a light and airy one, your Airstream is your home on wheels and a reflection of who you are and what you want out of your travels. Designed and developed with only the very best materials and hand-crafted by expert artisans, the line-up of options offered by Airstream are a cut above in all regards, and certainly in design and aesthetic appeal.

Modern Greige

Laminate

Seating

Walls

Flooring

Countertops

Window Shades

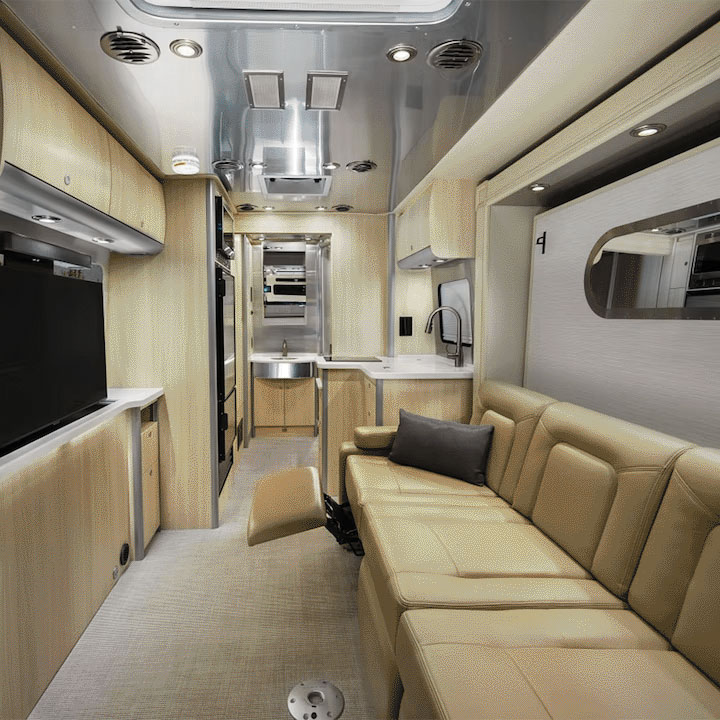

Classic Canyon

Laminate

Seating

Walls

Flooring

Countertops

Window Shades

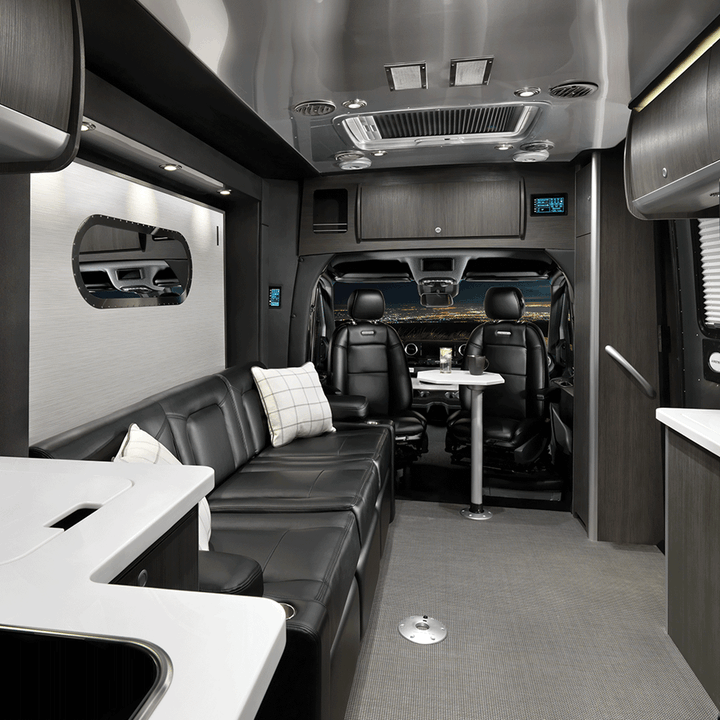

Formal Black

Laminate

Seating

Walls

Flooring

Countertops

Window Shades

MODEL SPECIFICATIONS

Click on a category below to see all the Airstream Atlas specifications and features.

General

Standard Features

1.1 cu. ft. Convection Microwave
Mercedes-Benz® Sprinter 3500 Chassis
Mercedes-Benz® 3.0L V6 Turbo Diesel
BlueTEC SCR Technology, 50 State–EPA/CARB Standards
188 HP/325 lbs Torque
7 Speed Automatic Transmission
3.92 Axel Ratio
170″ Wheelbase
16-18 Estimated Highway MPG*
Mercedes-Benz® Adaptive ESP® (Electronic Stability Program)
11,030 lbs/15,250 lbs GVWR/GCWR
10,045 lbs UBW
985 lbs NCC
Mercedes-Benz® Hitch, 7 Pin Trailer Plug, Brake Control Pre-wired Tow Package
Up to 5,000 lbs Tow Capacity**
Mercedes-Benz® Trailer Stability Assist System
Overall Length: 24′ 9″
Overall Height: 10′ 6″ (Including A/C)
Overall Width: 8′ 3″
Interior Height/Width: 6′ 6″/7′ 4.5″
Tank Capacities: 23 gals (Fresh), 31 gals (Gray), 23 gals (Black)
LPG: 9.76 gals (41.38 lbs) 80% fill
25.5 gals Diesel Fuel Tank

15,000 BTU Quietstream™ Ducted Air Conditioner with Heat Pump
16,000 BTU Furnace
60,000 BTU On-Demand Continuous Flow Water Heater
Heated Fresh, Gray & Black Tanks (12 volt)
9.1 cu. ft. (12 volt) Refrigerator & Freezer
2 Burner with Integrated Cover Cooktop
LP Gas Detector, Smoke and CO2 Alarm, Fire Extinguisher, First Aid Kit
Macerator Pump Plumbing System with Electric Retract
Omni Directional In-motion VHF/UHF
Cable TV Outlets/Hook-ups
Pre-wired for Satellite Dish
Touch Screen/Touch Pad Electronic Controls with Energy Management System
50 amp Multi-stage Charger, 1,000 Watt Pure Sine Inverter
3.2 kW (Diesel) Generator with Remote Start
30 amp/110 Volt Shore Power Service
300 Watt Solar Power System
24/7 365 Roadside Assistance
3 Years/36,000 Miles Airstream Warranty***
3 Years/36,000 Miles Mercedes-Benz® Warranty***
5 Years/100,000 Miles Mercedes-Benz® Engine Warranty***
30 AMP Service Single A/C with Heat Strip 11,500 BTU
2 – 100 Ah Deep Cycle Lithium Battle Born Batteries (LiFePO4)

*Actual mileage may vary due to load, driving style, and overall conditions. **Typical tow capacity will range from 4,200-5,000 lbs dependent upon build spec and intended vehicle loading with people, cargo, and fluids. ***New Vehicle Limited Warranty. Individual components may vary. See Owners Manual for specific warranty coverage and information.

Safety

Standard Features

Active Blind Spot Assist
Active Brake Assist
Active Cruise Control Assist
Active Driver Attention Assist
Active Lane Keeping Assist
Active Rear Cross Traffic Assist
E-Call Assist
Fire Extinguisher
Four Seat-Belt Positions

Front and Rear Parktronic Parking Assist
High Mounted Third Brake Light
Multiple Safety Impact Air Bags
Rear Camera Assist with Always-On Viewing & Adjustable Angle
Side Camera Assist Integrated in Side Mirrors
Smoke, CO2 & LPG Detectors
Traffic Sign Assist
Wet Wiper System

Exterior

Standard Features

110V Outlet, HDMI & Coaxial Output
Air Ride Suspension
Alcoa® DuraBright Aluminum Wheels
BASF Metallic OE Paint with Cut & Buff Finish
Chrome Package (Body Line Trim, Grill, License Plate Holder)
Exterior Shower with Hot & Cold Water
Fog Lamps
Frameless Radius-Corner Tilt-Open Windows
Front Lower Spoiler
Hidden Hitch Cover Rear Bumper

Hidden Retracting Screen Door
LED Patio & Awning Lighting
LED Undercarriage Lights with Dimmer
LP Accessory Hook-up (Grill)
Mercedes-Benz® OE Sprinter Tail Lights
Power Armless Awning with Auto-Retract
Power Entry Step with Hidden Design
Power Stabilizer Jacks
Remote Locking Storage Doors with Hidden Latches
Storage Compartments with LED Motion Lights

Cockpit

Standard Features

Advanced Multifunctional Steering Wheel
Custom Carpet Floor Mat
Entry Door Lighting
Heated Swivel Driver/Passenger Seats
In-Dash Maintenance Monitoring System
In-Dash Wireless Cell Phone Charging

MBUX Infotainment System (Mercedes-Benz User Experience) Touch Screen, Pinch, Zoom, Voice Recognition, Apple Carplay, Android Capability
Overhead Map Lights
Privacy Shades
Rear & Side View Camera Monitor
Tilt and Telescopic Leather Steering Wheel
